- 제품명 :

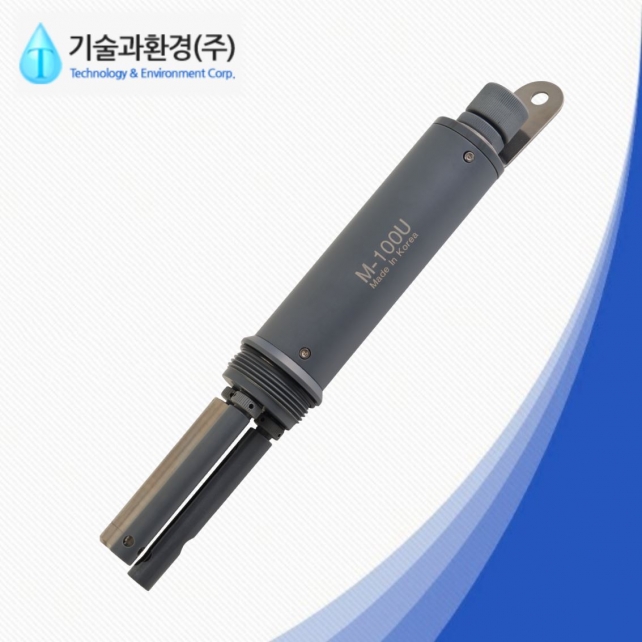

- M-100U(형식승인 ODO, pH 인증)

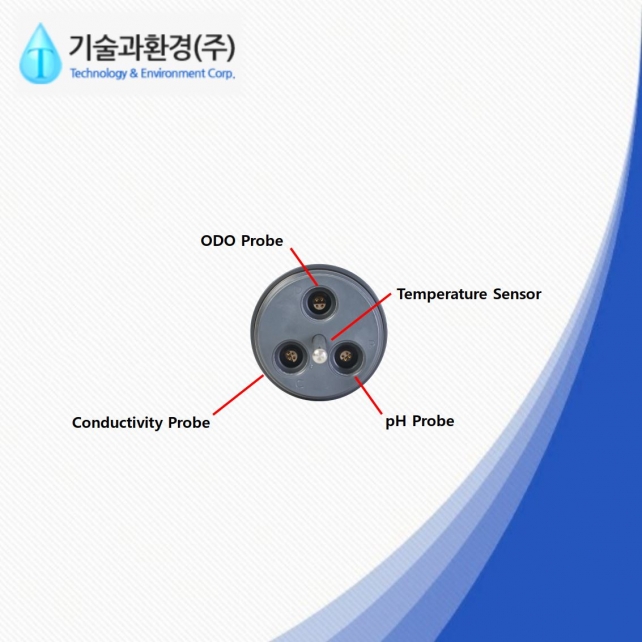

- 측정항목
- 온도, 전도도, DO(광학식 용존산소), pH
Parameters | |
Temperature | pH |
Conductivity | Depth |
SP-Conductance | Level |
TDS | Optical DO % |
Salinity | Optical DO mg/L |
※ 일부규격은 소비자의 요구에 따라 변경될 수 있음.
Sise | 54mm[diameter]x400mm[length] |
Data Output | RS-232C (Modbus Protocol, 환경부 연속자동측정기기 통신표준규격 지원), RS-485 (option) |
Weight | 720Kg |
Power | DC 12V 기준 : 0.1A[Max], 0.04A[Active], 1mA이하[Sleep] |
Operating Temperature | -5℃ ~ +50℃ |
Warranty | 2 years - Sonde, DISP, Field Cable 1 years - Sensors |
M-100U Parameter Measured | Range | Accuracy | Resolution |
|
Temperature | -5℃ ~ +75℃ | ±0.1℃ | 0.001℃ |
|
SP-Conductance | 0~200mS/cm | ±0.5% | 0.001mS/cm |
|
Salinity | 0~140psu | ±1% | 0.001psu |
|
TDS | 0~100,000 mg/L | Not Specified |
|
|
pH | 0~14unit | ±0.1 pH units within ±10℃ of calibration temp; | 0.001units | 형식승인인증 |
DO(%) | 0~500% | 0~200%: ±1% 200~500%: ±5% | 0.1% |
형식승인인증 |
DO(mg/L) | 0~50mg/L | 0~20mg/L : ±1% 20~50mg/L : ±5% | 0.001mg/L | |
Depth | 0~60m 0~200m | ±1% | 0.001m |
|
Level (Barometric pressure compensation) | 0~60m | ±0.03%
| 0.001m |
|
