- 제품명 :

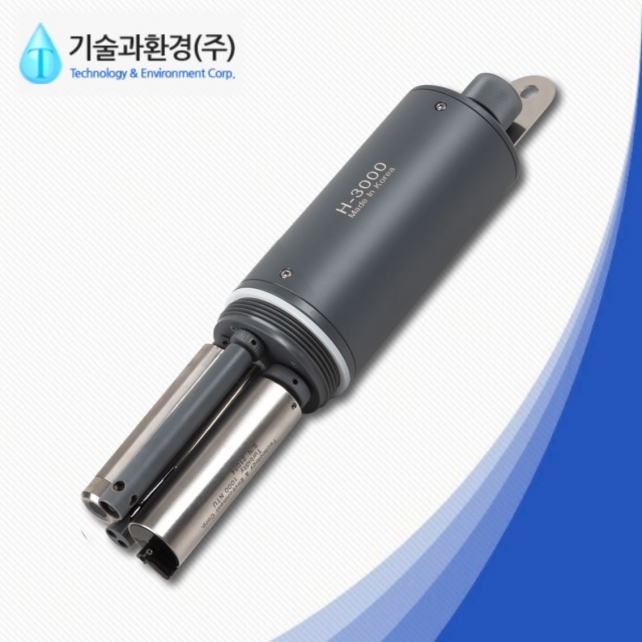

- H-3000 (Handheld Sonde)
- 측정항목
-
수온(TEMP), 전도도[EC], DO[용존산소], pH, 탁도[Turbidity],
수심[Depth], 클로로필[Chlorophyll], 질산염[Nitrate], 염화물[Chloride]
제품설명
H-3000 다항목수질측정기는 Optic Probe(DO, Turbidity, Chlorophyll) 방식의 기술로 휴대용 수질측정에 적합한 모델이며, 형광식센서로 수질을 측정하여 유지보수에 편리하며, 클로로필 등 14개 항목을 한번에 편리하게 측정 할 수 있는 다항목수질측정기 입니다.
H-3000 | |
측정 항목 | 수온 |
전도도 | |
pH | |
DO [Optic] | |
염도 | |
SS [Suspended Solid] | |
수심 | |
클로로필 | |
ORP | |
탁도 | |
Ammonium | |
Chloride | |
Nitrate | |
습도 | |
특징 | 측정하고자 하는 물의 운송에 의한 수질변화가 없다. |
측정 항목의 온도, 염분의 보상이 자동으로 된다. | |
소모성 센서의 자동 진단기능이 첨가되어 유지관리가 편리하다. | |
다양한 디지털 출력으로 데이터의 정확성이 높고 System Integration이 용이하다. | |
현장에서 손쉽게 각각의 Sensor Probe 교체가 가능하며 유지보수가 쉽다. | |
Sonde Size | 72mm[diameter] x 410mm[length] |
Power | Active 12VDC 0.08A, Sleep Mode 12VDC 0.01mA |
Data Output | RS-232C, Modbus protocol |
--------------------------------------------------------------------------------------------------------------------
About H-3000
H-3000 is suitable model to portable measurement . It can measure 14 items at the same time include chlorophyll.
H-3000 | |
Parameter | Temperature |
Conductivity | |
pH | |
DO [Optic] | |
Salinity | |
SS [Suspended Solid] | |
Depth | |
ORP | |
Turbidity | |
Chlorophyll | |
Nitrate | |
Ammonium | |
Chloride | |
Humidity | |
Unique point | No water quality change due to water flow change |
Auto correction of temperature and salinity | |
Auto checking function of consumable sensor | |
Easy system integration and high accuracy by various digital data output | |
Easy maintenance by easy probe change at sight | |
Sonde Size | 72mm[diameter] x 410mm[length] |
Power | DC 12V : 0.15A [Max], 0.1A [Active], 1mA [Sleep] |
Data Output | RS-232C, Modbus protocol |
♣ Specification
※ 일부규격은 소비자의 요구에 따라 변경될 수 있음.
