다항목수질측정기

HOME > PRODUCTS > 다항목수질측정기
확대보기
제품명 :

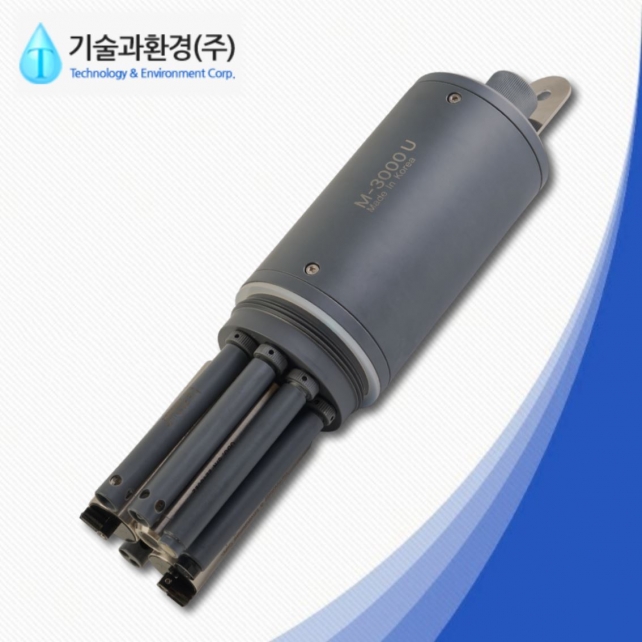

M-3000U(형식승인 ODO, pH, SS 인증)
측정항목
수온(TEMP), 전도도[EC], DO[광학식용존산소], pH, 탁도[Turbidity],

수심[Depth], 클로로필[Chlorophyll], 질산염[Nitrate], 염화물[Chloride],

남조류[BGA-PC], 적조류[BGA-PE]

제품설명

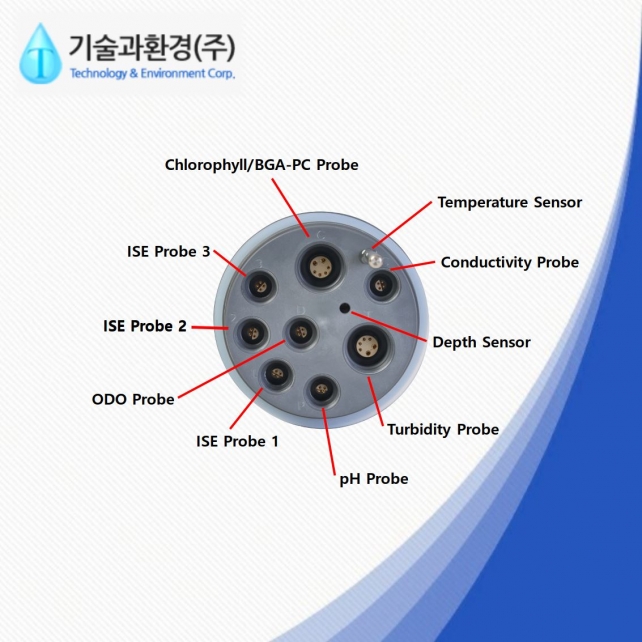

M-3000U 다항목수질측정기는 Optic Probe(DO, Turbidity, Chlorophyll) 기술로 장시간 수질 모니터링과 휴대용 측정에 적합한 모델이며, 클로로필 및 남조류, 적조류등 16개 항목을 한번에 편리하게 측정 할 수 있는 다항목수질측정기 입니다.


Parameters

Temperature

ORP

Conductivity

Depth

SP-Conductance

Nitrate

TDS

Turbidity

Salinity

SS

Optical DO %

BGA-PC

Optical DO mg/L

BGA-PE

pH

Ammonium

Nitrate

Chloride



---------------------------------------------------------------------------------------------------------------------------
About M-3000U

M-3000U is suitable model to long term monitoring and portable measurement by using Optic Probe technology. It can measure 16 items at the same time include Chlorophyll and BGA(PE and PC).


Parameters

Temperature

ORP

Conductivity

Depth

SP-Conductance

Nitrate

TDS

Turbidity

Salinity

SS

Optical DO %

BGA-PC

Optical DO mg/L

BGA-PE

pH

Ammonium

Nitrate

Chloride

          ♣ Specification

                       ※ 일부규격은 소비자의 요구에 따라 변경될 수 있음.



Sise

88mm[diameter]x450mm[length]

Data Output

RS-232C (Modbus Protocol, 환경부 연속자동측정기기 통신표준규격 지원), RS-485 (option)

Weight

1.5Kg

Power

DC 12V 기준 : 0.15A[Max], 0.1A[Active], 1mA이하[Sleep]

Operating Temperature

-5℃ ~ +50℃

Warranty

2 years - Sonde, DISP, Field Cable

1 years - Sensors







M-3000U Parameter

Measured

Range

Accuracy

Resolution



Temperature

-5℃ ~ +75℃

±0.1℃

0.001℃



SP-Conductance

0~200mS/cm

±0.5%

0.001mS/cm



Salinity

0~140psu

±1%

0.001psu



TDS

0~100,000mg/L

Not Specified





pH

0~14unit

±0.1 pH units within ±10℃ of calibration temp;

0.001units

형식승인인증

DO(%)

0~500%

0~200%: ±1%

200~500%: ±5%

0.1%



형식승인인증

DO(mg/L)

0~50mg/L

0~20mg/L : ±1%

20~50mg/L : ±5%

0.001mg/L

Depth

0~60m

0~200m

±1%



0.001m



Level

(Barometric pressure compensation)

0~60m

±0.03%

0.001m



ORP

-999~999mV

±20mV

0.1mV



Turbidity

0~2000NTU

±2%

0.001NTU



SS

0~2000mg/L

Not specifed

0.001mg/L

형식승인인증

NO3

0~1000mg/L

±10% of reading

0.001mg/L



NH4

0~18000mg/L

±10% of reading

0.001mg/L



CL

0~18000mg/L

±15% of reading

0.001mg/L



Chlorophyll

0~400ug/L

Linear:R²>0.999(Rhodamine WT)

0.001ug/L



BGA-PC

0~100ug/L

Linear:R²>0.999(Rhodamine WT)

0.001ug/L



BGA-PE

0~280ug/L

Linear:R²>0.999(Rhodamine WT)

0.001ug/L
